Colección: Fuente de Energía

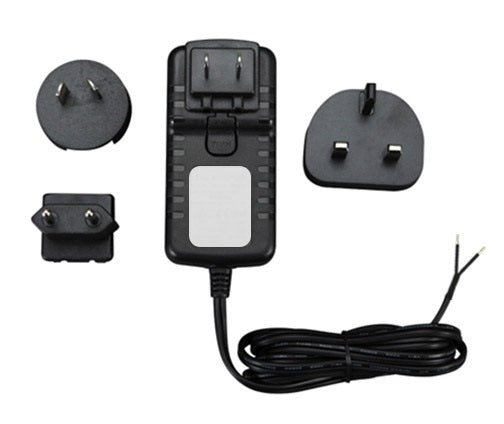

GPS7.3092 0.7A, Plug-in power supply, output: 24 V DC/0.75 A with open ends, input 100-240 V AC, 50/60Hz with country adapter for EU, UK, USA, Australia

GAT NET.Power Supply 7020-1 100-240V / VI Power supply for the GC7.3000 controller.

Power Cord 2.5m EU – IEC 60320 C13

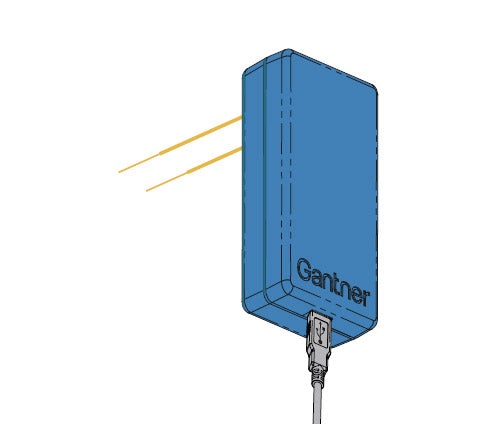

GAT ECO.EPS 7000, Emergency feed adapter for the GAT ECO lock series. Supply via an external USB power supply or USB battery pack

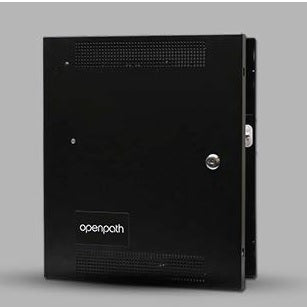

LifeSafety Power Enclosure, 12V/6A, 24V/3A power supply, high power + enclosure. Enclosure demensions: 20” H, 16” W, 4.5” D (508 x 406 x 114 mm)

LifeSafety Power Enclosure, 12V/4A, 24V/3A power supply + enclosure. Enclosure size: 14” H, 12” W, 5” D (356 x 305 x 114 mm)

LifeSafety Power Enclosure, 24V/3A or 12V/4A power supply + enclosure. Enclosure size: 14” H, 12” W, 5” D (356 x 305 x 114 mm)

Baterias SALTO Neo. Pilas alcalinas LR1 (5 paquetes de 4 pilas)

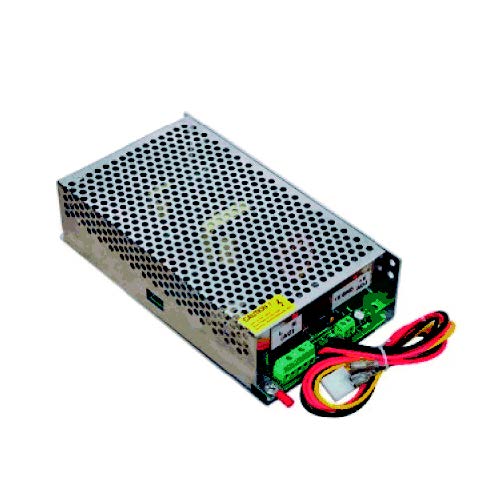

The FPO75 75W Power Supply Board is a high efficiency; off-line switchmode power supply-battery charger designed as a general purpose power supply to provide uninterrupted power for locks; auxiliary equipment and access controllers. Capable of providing two power outputs and featuring user selectability for 12 or 24 VDC; the unit provides multiple outputs; fire alarm interface; AC fault reporting; system faultreporting; form ‘C’ fault relay contacts and a host of features and functions designed to support the access control industry.(LifeSafety Power Part Number: FPO75)

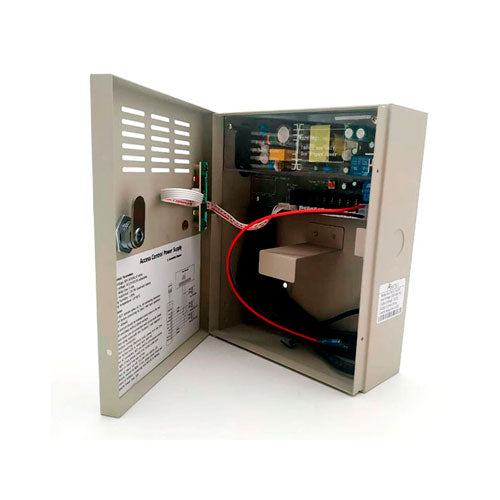

Fuente poder volante de interior, 220Vca/12Vcc/3,5A para terminales ViRDI.

Bateria de Litio (LiMnO2), 3V, 1400mAh, 17x34,5mm.

Bateria de Litio (LiMnO2), 3V, 850mAh, 15,6x27mm.

The C8 (8 Door) Lock Control Module lock adds eight (8) fused outputs to a FPO power supply for “buffered” lock control and is typically supplied as part of a system or purchased as an expansion piece to an existing system. The C8 provides eight (8) access control inputs capable of voltage or dry contact activation and eight (8) relay controlled outputs; individually fuse protected at 3A per output.(LifeSafety Power Part Number: C8)

Sixteen Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with seven AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power Mercury boards and door locks. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws. System includes one 150 watt 12V/12A pre-wired to sixteen Class 2; Power Limited (CL2PL) outputs (two D8P Boards) delivering regulated independent power connection to each Mercury board and one 250 watt 24V/10A power supply-battery chargers pre-wired to sixteen fused output (two C8 Boards) for independent relay lock power. Both power supplies features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Cabinet size: 20” x 24" x 6.5" with door lock and two (2) keys. Weight 26 lb.(LifeSafety Power Part Number: FPO150/250-2C82D8PE4M1)

Eight Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with three AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 150 watt 12V/4A and 24V/4A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to each Mercury board and eight fused output (C8 Board) for independent relay lock power. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 20” x 24" x 6.5" with door lock and two (2) keys. Weight 25 lb.(LifeSafety Power Part Number: FPO150-B100C8D8PE4M )

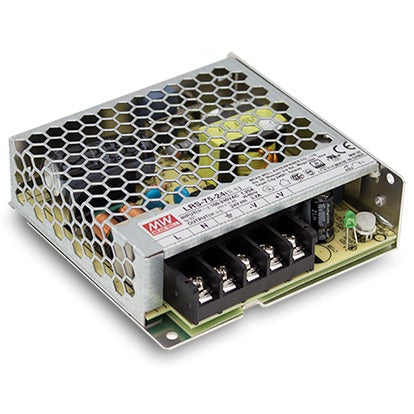

Miniature Riel Din Power Supply Single Output 24vdc 1Amp. ; Input 85 a 264VAC

Emergency Power Supply, PPD connection cord; battery harness, requires 4 AA batteries (Available only in the USA and Canada)

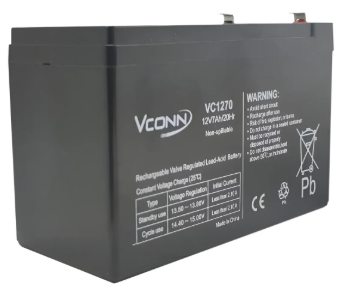

Bateria plomo-acido 12V-7A

Four Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with one AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/2A and 24V/2A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to each Mercury board and four fused output (C4 Board) for independent relay lock power. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 16” x 20" x 4.5" with door lock and two (2) keys. Weight 19 lb.(LifeSafety Power Part Number: FPO75-B100C4D8PE2M)

Two Door Mercury Dual Voltage Integrated Power System supporting two AC-MER-CONT-1DR or one AC-MER-CONT-2DR (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/2A and 24V/2A power supply-battery charger. The power supply is pre-wired to four Class 2; Power Limited (CL2PL) outputs (C4P Board) delivering a regulated independent power connection to each Mercury board and lock power and control. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet (unless using two AC-MER-CONT-1DR). Cabinet size: 12” x 14" x 4.5" with door lock and two (2) keys. Weight 14 lb.(LifeSafety Power Part Number: FPO75-B100C4PE1M)

Bateria Plomo-Acido 12Vcc, 1,3A.
