AC-LSP-8DR-MER-LCK

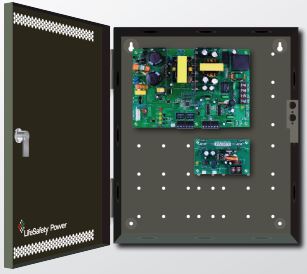

Eight Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with three AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 150 watt 12V/4A and 24V/4A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to each Mercury board and eight fused output (C8 Board) for independent relay lock power. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 20” x 24" x 6.5" with door lock and two (2) keys. Weight 25 lb.(LifeSafety Power Part Number: FPO150-B100C8D8PE4M )
