Lanyard for Body-worn cameras

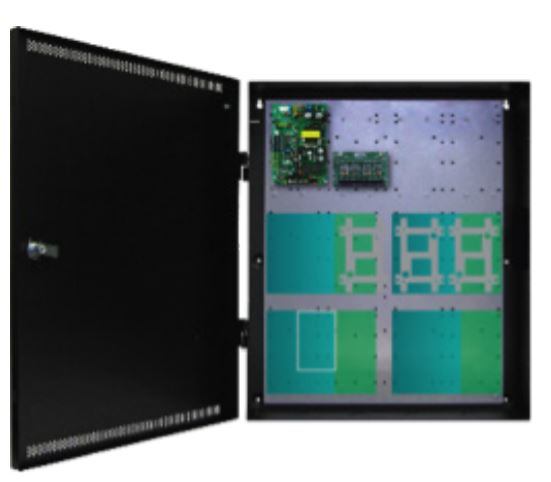

Sixteen Door Mercury Single Voltage Integrated Power System supporting one AC-MER-CONT-2DR with Seven AC-MER-CON–MR52 (Mercury hardware sold separately). Includes painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 150 watt 12V/12A or 24V/6A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to Mercury boards and auxiliary equipment. The power supply features dual outputs; form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 20” x 24" x 6.5" with door lock; tamper switch and two (2) keys. Weight 25 lb.(LifeSafety Power Part Number: FPO150-D8PE4M1)

Sixteen Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with seven AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power Mercury boards and door locks. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws. System includes one 150 watt 12V/12A pre-wired to sixteen Class 2; Power Limited (CL2PL) outputs (two D8P Boards) delivering regulated independent power connection to each Mercury board and one 250 watt 24V/10A power supply-battery chargers pre-wired to sixteen fused output (two C8 Boards) for independent relay lock power. Both power supplies features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Cabinet size: 20” x 24" x 6.5" with door lock and two (2) keys. Weight 26 lb.(LifeSafety Power Part Number: FPO150/250-2C82D8PE4M1)

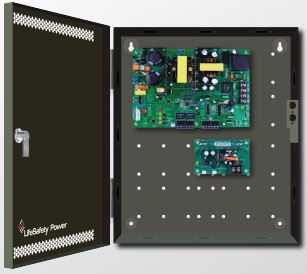

Two Door Mercury Single Voltage Integrated Power System supporting two AC-MER-CONT-1DR or one AC-MER-CONT-2DR (Mercury hardware sold separately). Includes painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/6A or 24V/3A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to Mercury boards and auxiliary equipment. The power supply features dual outputs; form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet (unless using two AC-MER-CONT-1DR). Cabinet size: 12” x 14" x 4.5" with door lock; tamper switch and two (2) keys. Weight 14 lb.(LifeSafety Power Part Number: FPO75-D8PE1M)

Two Door Mercury Dual Voltage Integrated Power System supporting two AC-MER-CONT-1DR or one AC-MER-CONT-2DR (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/2A and 24V/2A power supply-battery charger. The power supply is pre-wired to four Class 2; Power Limited (CL2PL) outputs (C4P Board) delivering a regulated independent power connection to each Mercury board and lock power and control. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet (unless using two AC-MER-CONT-1DR). Cabinet size: 12” x 14" x 4.5" with door lock and two (2) keys. Weight 14 lb.(LifeSafety Power Part Number: FPO75-B100C4PE1M)

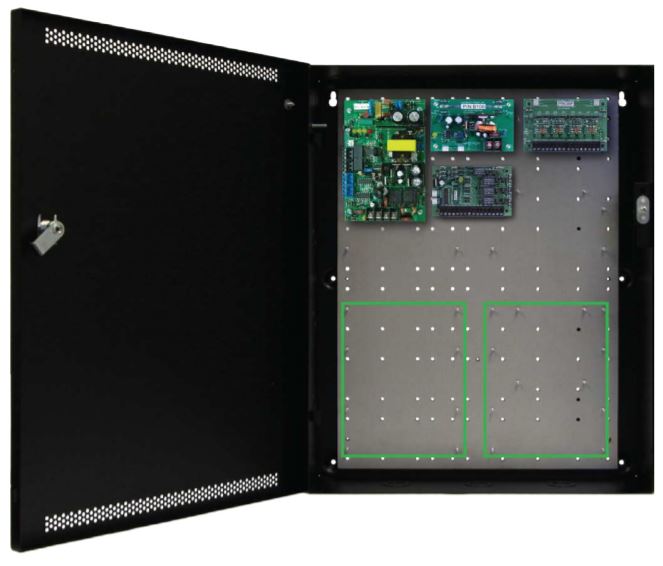

Four Door Mercury Single Voltage Integrated Power System supporting one AC-MER-CONT-2DR with one AC-MER-CON–MR52 (Mercury hardware sold separately). Includes painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/6A or 24V/3A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to Mercury boards and auxiliary equipment. The power supply features dual outputs; form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 16” x 20" x 4.5" with door lock; tamper switch and two (2) keys. Weight 19 lb.(LifeSafety Power Part Number: FPO75-D8PE2M)

Four Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with one AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/2A and 24V/2A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to each Mercury board and four fused output (C4 Board) for independent relay lock power. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 16” x 20" x 4.5" with door lock and two (2) keys. Weight 19 lb.(LifeSafety Power Part Number: FPO75-B100C4D8PE2M)

Eight Door Mercury Single Voltage Integrated Power System supporting one AC-MER-CONT-2DR with three AC-MER-CON–MR52 (Mercury hardware sold separately). Includes painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 75 watt 12V/6A or 24V/3A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to Mercury boards and auxiliary equipment. The power supply features dual outputs; form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 20” x 24" x 6.5" with door lock; tamper switch and two (2) keys. Weight 25 lb.(LifeSafety Power Part Number: FPO75-D8PE4M)

Eight Door Mercury Dual Voltage Integrated Power System supporting one AC-MER-CONT-2DR with three AC-MER-CON–MR52 (Mercury hardware sold separately). The advantage of a dual voltage power supply is the ability to power both Mercury boards and door locks from the same supply. Includes a painted steel enclosure; removable pre drilled back plate; controller standoffs and mounting screws and a 150 watt 12V/4A and 24V/4A power supply-battery charger. The power supply is pre-wired to eight Class 2; Power Limited (CL2PL) outputs (D8P Board) delivering a regulated independent power connection to each Mercury board and eight fused output (C8 Board) for independent relay lock power. The power supply features dual outputs (12 & 24volts DC); form ‘C’ fault relay contacts; a fire alarm input and network interface (interface module sold separately) to enable monitoring; reporting and control of the power system from Access Control Manager (ACM) link. Battery space for two 12V; 8Ah batteries is available in cabinet. Cabinet size: 20” x 24" x 6.5" with door lock and two (2) keys. Weight 25 lb.(LifeSafety Power Part Number: FPO150-B100C8D8PE4M )

The C8 (8 Door) Lock Control Module lock adds eight (8) fused outputs to a FPO power supply for “buffered” lock control and is typically supplied as part of a system or purchased as an expansion piece to an existing system. The C8 provides eight (8) access control inputs capable of voltage or dry contact activation and eight (8) relay controlled outputs; individually fuse protected at 3A per output.(LifeSafety Power Part Number: C8)

The D8P (8 Out) Power Distribution Module provides 8 auxiliary power outputs; each one individually protected by a solid state circuit breaker (D8P) rated at 2.5A each. Each output is programmable to either of the two voltages available when used in a dual voltage power system; or to the continuous output or the resettable output of the power supply when used in a single voltage system. (LifeSafety Power Part Number: D8P)
