Colección: Productos

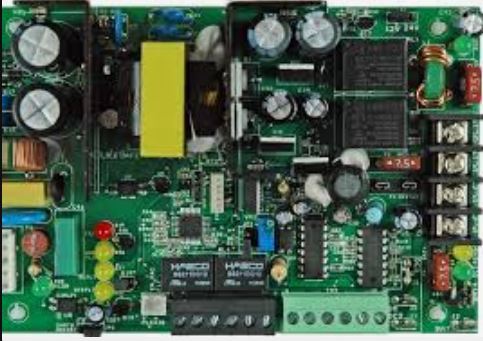

The FPO150 150W Power Supply Board is a high efficiency; off-line switchmode power supply-battery charger designed as a general purpose power supply to provide uninterrupted power for locks; auxiliary equipment and access controllers. Capable of providing two power outputs and featuring user selectability for 12 or 24 VDC; the unit provides multiple outputs; fire alarm interface; AC fault reporting; system faultreporting; form ‘C’ fault relay contacts and a host of features and functions designed to support the access control industry.(LifeSafety Power Part Number: FPO150)

16 Door Access/Dual Voltage 300W PS/C; 12VDC@12A and 24VDC@6A System Features: 80Ah charge capability; microprocessor battery charging; charger software algorithm minimizes effects of deep battery discharge; continuous and switched DC outputs; sixteen 12 or 24VDC auxiliary outputs fused at 3A (Class 2 power limited version also available); fire alarm input (FAI); sixteen opto isolated; NO/NC; access control inputs; sixteen relay lock control outputs; programmable for either 12 or 24VDC; failsafe or failsecure; and FAI; fault detection reporting with delay; system can be web-managed (w/ NetLink module); 120V/230VAC; locking enclosure; 20" X 24" X 4.5"; ten year warranty; US/Canada agency listed for access; security; fire; CCTV; mass notification (LifeSafety Power Part Number: FPO150/150-2C82D8E4)

LifeSafety Power Mercury Unified Unified Power Systems; 400W Dual Voltage; 120 VAC; 16 Managed / 16 Auxiliary Outputs

Power supply board 150W; 12A/12V or 6A/24V | Power supply board 250W; 20A/12V or 10A/24V | 16 auxiliary DC outputs class 2 power limited at 2.5A per output | Eight output smart distribution module; fused at 3A per output | Eight output smart distribution module; fused at 3A per output | Four port network monitoring module | Enclosure 20W x 24H x 4.5D with backplate and door mount which can hold up to eight Mercury boards. Requires separate enclosure for batteries.

Power supply board 150W; 12A/12V or 6A/24V | Power supply board 250W; 20A/12V or 10A/24V | 16 auxiliary DC outputs class 2 power limited at 2.5A per output | Eight output smart distribution module; fused at 3A per output | Eight output smart distribution module; fused at 3A per output | Four port network monitoring module | Enclosure 30W x 23H x 6.5D with Mercury backplate and door mount option (Lifesafety Power Part #: FPO150/250-2D8P2M8NL4E6M1)

Power supply board 150W; 12A/12V or 6A/24V | Power supply board 250W; 20A/12V or 10A/24V | 16 auxiliary DC outputs class 2 power limited at 2.5A per output | 16 output smart distribution module; fused at 3A per output | Four port network monitoring module | Enclosure 30W x 36H x 4.5D with backplate which can hold up to eight Mercury boards. Battery space available.

LifeSafety Power; Mercury 16DR; ProWire; Tie Wrap Cable Management; Networked; 452W dual voltage; 120/230VAC Input access power system.

LifeSafety Power; Mercury 16DR; ProWire; Tie Wrap Cable Management; Networked; 452W dual voltage; 120/230VAC Input access power system.

LifeSafety Power ProWire 16 Door Panduit Unified Power wall mount dual voltage access power system; precision wired for MERCURY controllers (sold seperately). ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation; maintenance and servicing.

150W power supply; 12A/12V or 6A/24V|12V secondary voltage power module. Adjustable 5-18V output @ 4A max; class 2 power limited|16 DC auxiliary outputs class 2 power limited at 2.5A per output; each output selectable for Bus1 or Bus2|8 out managed distribution module; fused at 3A per output|Four port network monitoring module|E4 enclosure size 24H x 20W x 4.5D with Mercury back plate and door mount kit; Panduit; 8 Doors; Mercury LP1502/MR52 board(s)(LifeSafety Power AC-LSP-FPO150-B100C8P2D8PE4M-T8-A)

The FPO250 250W Power Supply Board is a high efficiency; off-line switchmode power supply-battery charger designed as a general purpose power supply to provide uninterrupted power for locks; auxiliary equipment and access controllers. Capable of providing two power outputs and featuring user selectability for 12 or 24 VDC; the unit provides multiple outputs; fire alarm interface; AC fault reporting; system faultreporting; form ‘C’ fault relay contacts and a host of features and functions designed to support the access control industry.(LifeSafety Power Part Number: FPO250)

16 Door Access/Single Voltage 250W PS/C; 12VDC@20A or 24VDC@10A System Features: 80Ah charge capability; microprocessor battery charging; charger software algorithm minimizes effects of deep battery discharge; continuous and switched DC outputs; sixteen 12 or 24VDC auxiliary outputs fused at 3A (Class 2 power limited version also available); fire alarm input (FAI); sixteen opto isolated; NO/NC; access control inputs; sixteen relay lock control outputs; programmable for either 12 or 24VDC; failsafe or failsecure; and FAI; fault detection reporting with delay; system can be web-managed (w/ NetLink module); 120V/230VAC; locking enclosure; 20" X 24" X 4.5"; ten year warranty; US/Canada agency listed for access; security; fire; CCTV; mass notification (LifeSafety Power Part Number: FPO250-2C82D8E4)

LifeSafety Power Mercury Unified Power Systems; 250W Single Voltage; 120 VAC; for 8 Doors

250W power supply; 20A/12V or 10A/24V 12V secondary voltage power module. Adjustable 5-18V output @ 4A max; class 2 power limited|8 DC auxiliary outputs class 2 power limited at 2.5A per output; each output selectable for Bus1 or Bus2|8 out managed distribution module; fused at 3A per output Four port network monitoring module E6 enclosure size 30H x 23W x 6.5D with Mercury back plate. (LifeSafety Power Part Number: FPO250-B100D8PM8NL4E6M)

LifeSafety Power Mercury Unified Unified Power Systems; 250W NETWORKED / 12/24VDC / 8 Doors; 8 Managed Outputs

16 Door Access/Dual Voltage 500W PS/C; 12VDC@20A and 24VDC@10A System Features: 80Ah charge capability; microprocessor battery charging; charger software algorithm minimizes effects of deep battery discharge; continuous and switched DC outputs; sixteen 12 or 24VDC auxiliary outputs fused at 3A (Class 2 power limited version also available); fire alarm input (FAI); sixteen opto isolated; NO/NC; access control inputs; sixteen relay lock control outputs; programmable for either 12 or 24VDC; failsafe or failsecure; and FAI; fault detection reporting with delay; system can be web-managed (w/ NetLink module); 120V/230VAC; locking enclosure; 20" X 24" X 4.5"; ten year warranty; US/Canada agency listed for access; security; fire; CCTV; mass notification (LifeSafety Power Part Number: FPO250/250-2C82D8E4)

LifeSafety Power; Mercury 24DR; ProWire; Tie Wrap Cable Management; Networked; 564W dual voltage; 120/230VAC Input access power system.

LifeSafety Power MCLASS™ WIRED UNIFIED POWER SYSTEM; NETWORKED 500W / 12 & 24VDC / 16 Doors; 32 Managed Outputs

LifeSafety Power FPO250/250-5M8NLXE8M2/P16-A Mercury ProWire Power System; 500W Dual Voltage; 120VAC; 40 network managed fused outputs; 16 Doors; Panduit; Prewired for one LP1502 and seven MR52 boards; Enclosure Size: 36.0H x 30.0W x 6.5D in (91.44 x 76.2 x 16.51 cm) System Weight 61.90 lbs (28.08kg)

LifeSafety Power - Mercury Unified Power Systems - 500W Dual Voltage; 120 VAC

Mercury Unified Power System combine FlexPower modules alongside preview access control hardware in one compact and secure UL listed solution. ProWire system are prewired for power to the access control modules; faults; tamper switch; lock control wiring (where applicable) and communication.

One (1) 75W-12/24VDC PS; Backplate; Standoffs; & two (2) E2M size cabinets kit: The FlexPower FPO75-2E2M is an offline switchmode 75 watt power supply-battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs; user selectable for 12 or 24 VDC; the unit is configured in a painted-steel; locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use; the second is programmable for either fail-safe or fail-secure operation; activated when the fire alarm disconnect is initiated. Size: 16" x 20" x 4.5"; Weight: 13 lb. (LifeSafety Power Part Number: FPO75-2E2BP2)

4 Door Access/Single Voltage 75W PS/C; 12VDC@4A or 24VDC@2A System Features: 40Ah charge capability; microprocessor battery charging; charger software algorithm minimizes effects of deep battery discharge; continuous and switched DC outputs; fire alarm input (FAI); four opto isolated; NO/NC; access control inputs; four relay lock control outputs; failsafe or failsecure; and FAI – each output fused for 3A (Class 2 power limited version also available). Fault detection reporting with delay; system can be web-managed (w/ NetLink module); 120V/230VAC; locking enclosure: 12" X 14" X 4.5"; ten year warranty; US/Canada agency listed for access; security; fire; CCTV; mass notification (LifeSafety Power Part Number: FPO75-C4E1)
