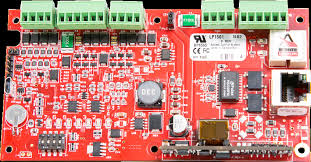

E5 enclosure size 8.5W x 11H x 3D with Mercury/LNL hole mount pattern Fits up to Mercury 1501 or Mr51e Controllers(LifeSafety Power Part Number: E5M)

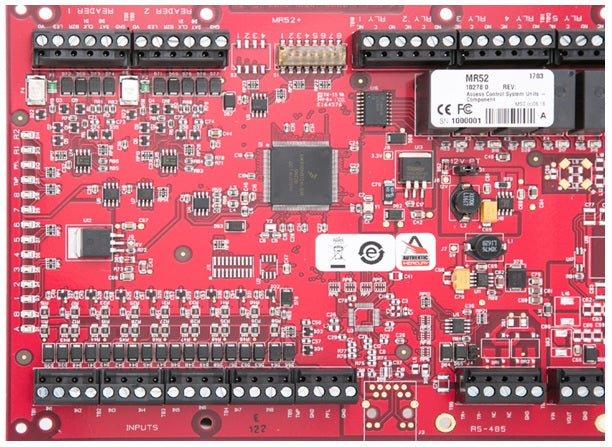

75W 12V/6A or 24V/3A UL listed 4DR Mercury rack mount; networked; 12/24V 8 class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75-D8PNZ)

75W 12V/6A or 24V/3A UL listed 4DR Mercury rack mount; 12/24V 8 class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75-D8PZ)

75W 12V/6A or 24V/3A UL listed 4DR Mercury rack mount; networked 12/24V 8 managed class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75-M8PNZ)

75W 12V/2A and 24V/2A UL listed Dual Voltage 12 & 24VDC 12 & 24VDC: 4DR Mercury rack mount; 4 class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75B-C4PNZ)

75W 12V/2A and 24V/2A UL listed Dual Voltage 12 & 24VDC 12 & 24VDC: 4DR Mercury rack mount; 4 class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75B-C4PZ)

75W 12V/2A and 24V/2A UL listed Dual Voltage 12 & 24VDC 12 & 24VDC: 4DR Mercury rack mount; 8 class 2 power limited outputs fused at 2.5A/ea. Fits (2) MR52 sized Mercury controllers; Standard 2U EIA; 19” rack mount chassis; UL/CUL listed system / z wire mgmt cable arm(LifeSafety Power Part Number: RGM75B-M8PNZ)

75W power supply; 6A/12V or 3A/24V;12V secondary voltage power module. Adjustable 5-18V output @ 4A max; class 2 power limited;8 out managed distribution module; class 2 pwr ltd at 2.5A per output;Four port network monitoring module;Single FPO with Dual B100 Buss/Flex Cable Kit 5

RBE rackmount battery enclosure for 7-8Ah batteries; Standard 2U EIA; 19” rack mount chassis(LifeSafety Power Part Number: RBE)

LifeSafety Power OneDropTM SDU (Single Drop USB) adapter allows a single IP connection to be used in Mercury applications when using a LSP Netlink network communication module. The SDU cable connects the Netlink's ethernet port to a micro-b USB connector; allowing direct connection of the NetLink to an LP series controller's USB port. Allows shared NetLink and Mercury Controller IP connection. Reduces addresses on the network; Lowers network drop fees; Reduces cybersecurity risks; Makes managed power possible in installations where adding network drops is not an option.

Power supply board 150W; 12A/12V or 6A/24V | Secondary voltage power supply; 5-18V adjustable @ 4A max; class 2 power limited output | 8 relay lock control outputs fused at 3A per output | 8 auxiliary DC outputs fused at 3A per output | Enclosure; Size 18. (16W x 20H x 4.5D) with Mercury backplate (Non-stock item)(LifeSafety Power Part Number: FPO150-B100C8D8E2M)

Power supply board 75W; 6A/12V or 3A/24V | Secondary voltage power supply; 5-18V adjustable @ 4A max; class 2 power limited output | 4 relay lock control outputs fused at 3A per output | 8 auxiliary DC outputs fused at 3A per output | Network communication module 2nd Gen. | Enclosure; Size 18. (16W x 20H x 4.5D) with Mercury backplate (Non-stock item)(LifeSafety Power Part Number: FPO75-B100C4D8NL2E2M)

Eight Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 4A/24V | Secondary voltage module; 4A/12V class 2 power limited | Eight relay managed outputs fused at 3A | 8 auxiliary output power limited at 2.5A | Four port monitoring module | Enclosure size: 30" x 23" x 6.5" | 47 lbs | Wired for MR52/EP1502. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150-B1002D8PM8NL4E6M/P8-A)

Eight Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 4A/24V | Secondary voltage module; 4A/12V class 2 power limited | Eight relay lock control outputs fused at 3A | 8 auxiliary output power limited at 2.5A | Enclosure size: 30" x 23" x 6.5" | 47 lbs | Wired for MR52/EP1502. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150-B100C82D8PE6M/P8-A)

Sixteen Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 12A/12V | Power supply board 250W; 10A/24V | 16 relay lock control outputs fused at 3A | 16 auxiliary outputs power limited at 2.5A | Enclosure size: 36" x 30" x 4.5" | 73 lbs | Wired for MR52/EP1502. NOTE: All ProWire Unified Power wall mounts are custom made to order. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150/250-2C83D8PE8M2/P16-A)

Sixteen Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 12A/12V | Power supply board 250W; 10A/24V | 16 relay lock control outputs fused at 3A | 16 auxiliary outputs power limited at 2.5A | Enclosure size: 36" x 30" x 4.5" | 73 lbs | Wired for all MR52s. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150/250-2C83D8PE8M2/P16-C)

Sixteen Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 12A/12V | Power supply board 250W; 10A/24V | 16 relay managed outputs fused at 3A | 16 auxiliary outputs power limited at 2.5A | Four port monitoring module | Enclosure size: 36" x 30" x 4.5" | 73 lbs | Wired for MR52/EP1502. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150/250-3D8P2M8NL4E8M2/P16-A)

Sixteen Door Mercury Panduit ProWire Unified Power wall mount | Power supply board 150W; 12A/12V | Power supply board 250W; 10A/24V | 16 relay managed outputs fused at 3A | 16 auxiliary outputs power limited at 2.5A | Four port monitoring module | Enclosure size: 36" x 30" x 4.5" | 73 lbs | Wired for All MR52s. NOTE: All ProWire Unified Power wall mounts are custom made to order. After 48 hours of Avigilon's order acknowledgment; all changes to an accepted purchase order will be subject to a Change Order charge of 30% of the net deliverable value. Returns and cancellations of an order or portion of an order that includes deliverables that have been manufactured and prepped for shipping will be applied with a 50% restocking fee. (Lifesafety Power Part #: FPO150/250-3D8P2M8NL4E8M2/P16-C)

AXIAL LEADED 1K1%1/4W RESISTORS; 32-pack(Mercury Part Number: RES-1K32)

CABLE FOR MR-50 TAMPER (Mercury Part Number: A-TC-MR50)

Replace 3-Position Terminal Blocks; 10-pack(Mercury Part Number: A-TERM5-3)

Replace 4-Position Terminal Blocks; 10-pack(Mercury Part Number: A-TERM5-4)

Replace 5-Position Terminal Blocks; 10-pack(Mercury Part Number: A-TERM5-5)

Replace 6-Position Terminal Blocks; 10-pack(Mercury Part Number: A-TERM5-6)
